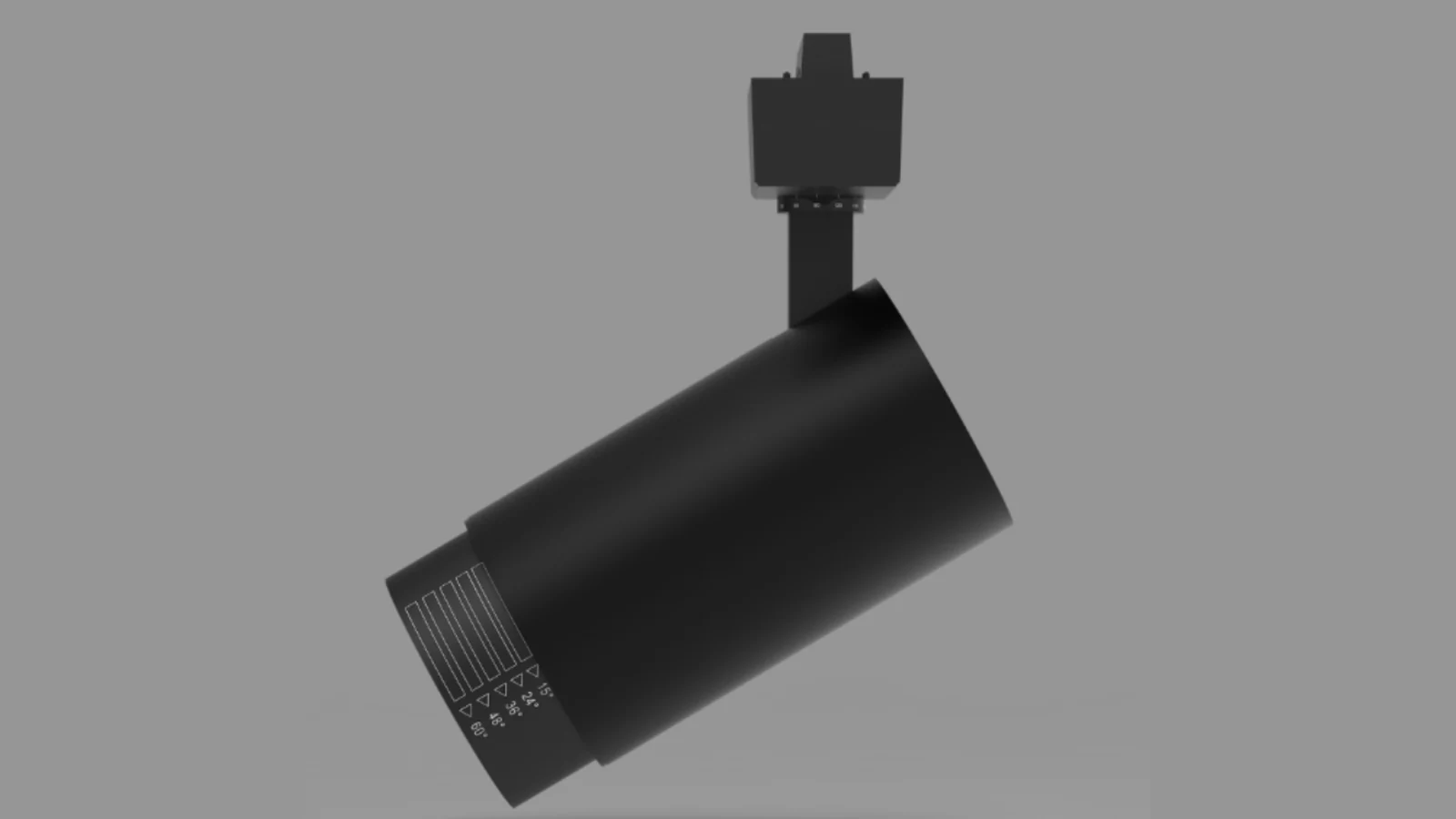

ZOOMABLE LED TRACK SPOTLIGHT
Track Spotlight · SKU OX-LED-049
A zoomable LED track spot light with a 15° to 60° beam for 3-wire or 4-wire track. Available in black or white, with four power options for retail, gallery and display lighting.
Product gallery
Track Spotlight · 6 images including technical drawings
OrbitX Track Spotlight

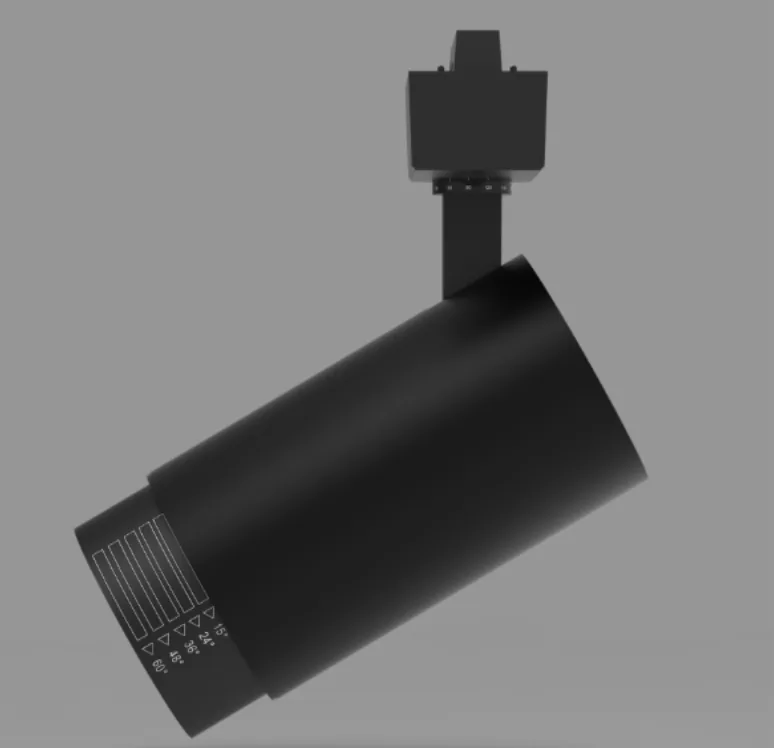

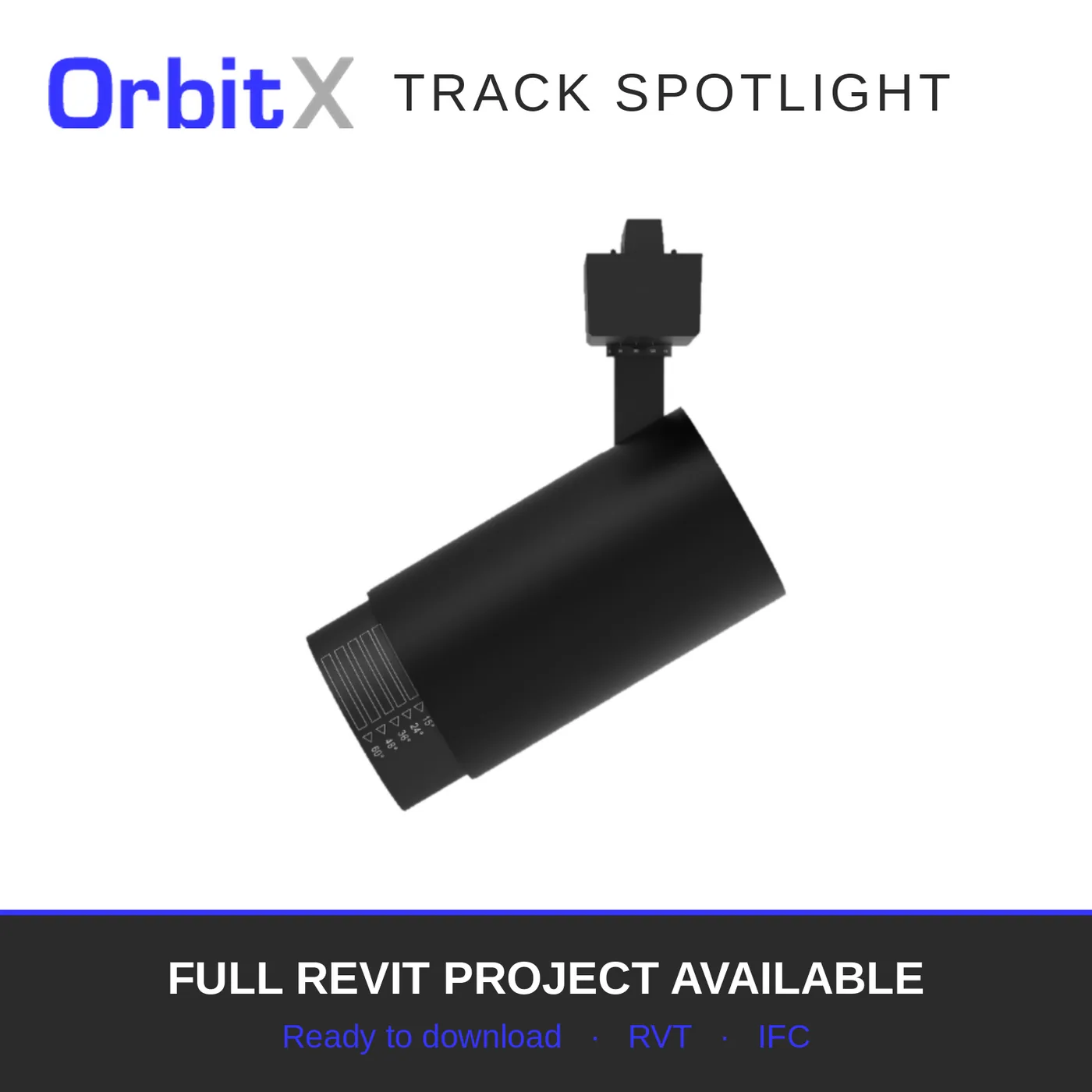

Image 1 of 6: OrbitX Track Spotlight
Photometric Data
- 10 W: 800 lm
- 20 W: 1 600 lm
- 30 W: 2 400 lm
- 40 W: 3 200 lm
- Luminous Efficacy: 80 lm/W
- Colour Temperature: 3 000 K, 4 000 K or 6 000 K
- Colour Rendering Index (CRI): 83

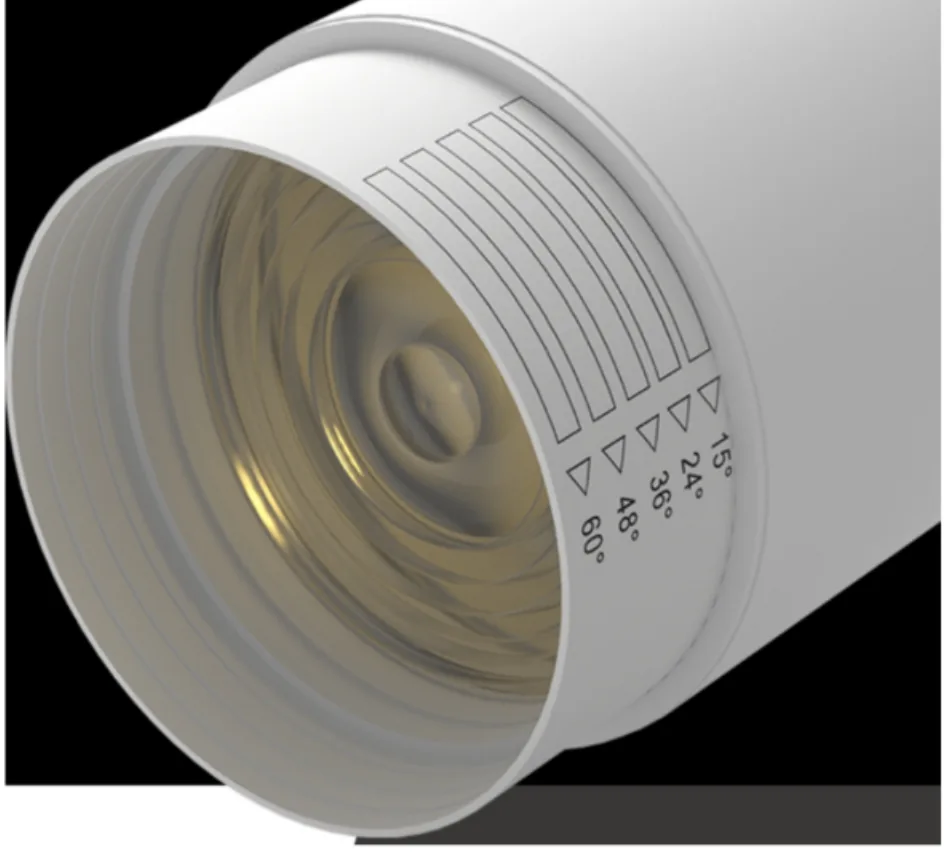

- Beam Angle: 15° to 60° zoom
Electrical Data
- Operating Voltage: 220–240 V AC
- IP Rating: IP20
- Flicker free — OHS and MHS Act compliant
- Ambient Temperature: 0 °C to +30 °C
- 3-wire or 4-wire track compatible
Construction
- Polycarbonate housing, no glass
- 10 W: 120 mm long × 50 mm diameter
- 20 W: 145 mm long × 60 mm diameter
- 30 W: 168 mm long × 70 mm diameter
- 40 W: 168 mm long × 80 mm diameter

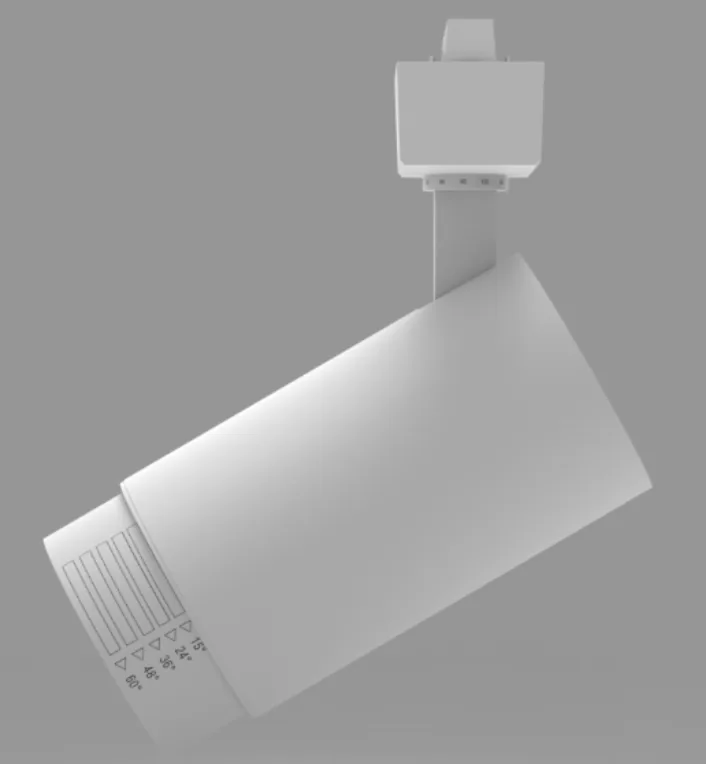

- Black or white finish
Guarantee & Compliance
- Operational Guarantee: 8 years
- Light Output Guarantee: 5 years
- Nominal Lifetime (L70): 60 000 hours
- IEC 60598-1 and IEC 60598-2-5
- IEC 61547 and SANS 215 (CISPR15)
BIM & documentation
The Track Spotlight family is published in the OrbitX BIM library with Revit families, IFC and supporting documentation.
Dimensions
Configurations & Performance
| Model Code | Power (W) | Luminous Flux (lm) | Length | Diameter |
|---|---|---|---|---|
| OXTLZ10 | 10 | 800 | 120 mm | 50 mm |
| OXTLZ20 | 20 | 1 600 | 145 mm | 60 mm |
| OXTLZ30 | 30 | 2 400 | 168 mm | 70 mm |
| OXTLZ40 | 40 | 3 200 | 168 mm | 80 mm |
All four codes are modelled in the Revit project. Specification tolerance ±10%.
Graphs
Light Survival Rate Curve
Time (×1000 h) vs Light Survival (%)
Rate of Reduction in Light Output (L70)
Time (×1000 h) vs Lumen Output (%)
Type A Lighting*
Colour Rendering Index (CRI) vs Gamut Area Index (GAI)
*Type A Lighting as defined by the Lighting Research Centre, New York
Spectral Power Distribution (SPD)
Wavelength (nm) vs Relative Power
