T8 LED Tube
INTEGRATED LED TUBELIGHT
LED Tube · SKU OX-LED-028
OrbitX Direct Drive Technology onboard. Made for new fit-and-retrofit LED-ready fittings with a unique retrofit lead option available.
T8 RetrofitDirect DriveUnique Retrofit Lead OptionIP20
Product gallery
T8 LED Tube · 9 images including technical drawings
1 / 9

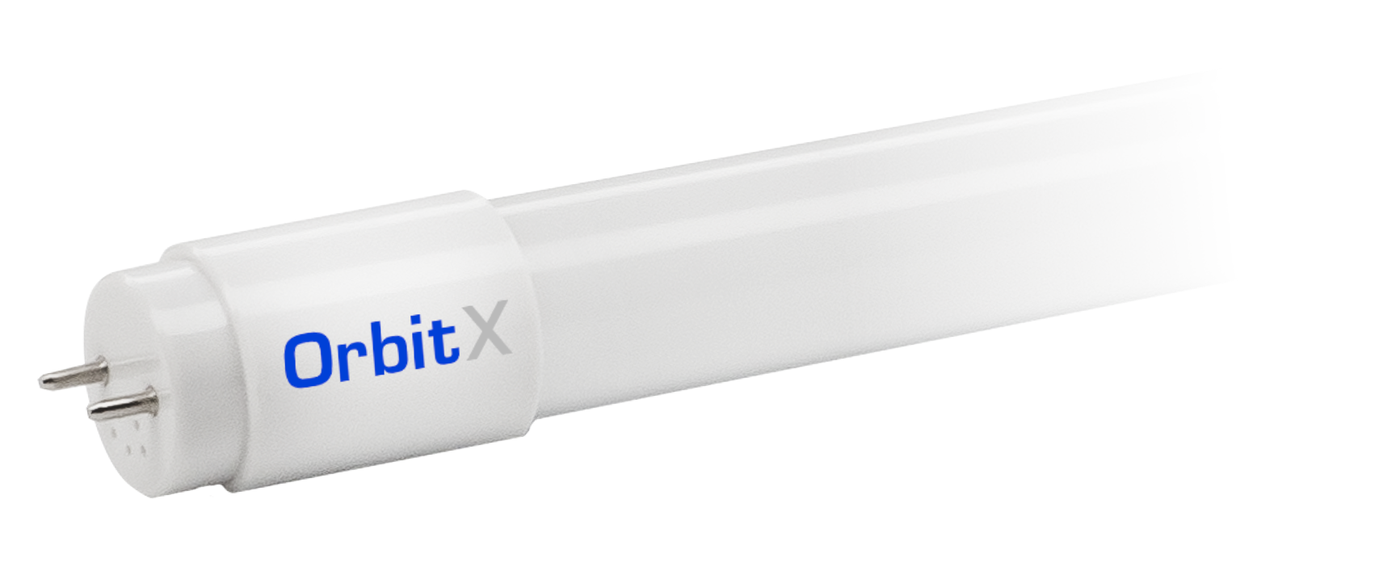

OrbitX T8 LED Tube
Image 1 of 9: OrbitX T8 LED Tube
Guarantee & Lifetime
- Operational Guarantee (365d × 24h): 6 years
- Light Output Guarantee (365d × 24h): 3 years
- Nominal Lifetime (L70): 60,000 hours
- Testing Standards: IES LM-80, TM-21
Photometric Data
- Luminous Efficacy: 135 lm/W
- Correlated Colour Temperature (CCT): 5000K (options available)
- Colour Rendering Index (CRI): 83
- Gamut Area Index (GAI): 96
- Light Quality: Type A compliant (Lighting Research Centre, New York)
- Beam Angle: 180°
- Stroboscopic Effect (100Hz): 80% flicker free (complies with OHS and MHS Act regulations)
Electrical Data
- Power: See Configurations table
- Power Factor: >0.98
- Operating Voltage: 220–240V AC
- Minimum Sustained Voltage: No minimum limit, operational from 150V
- Maximum Sustained Voltage: 250V for 2 minutes
- On/Off Switching: Unlimited
- Delay to Full Brightness: Immediate
Temperature
- Max Ambient Temperature (T Ambient): +30°C
- Min Ambient Temperature (T Ambient): -40°C
Safety & Compliance
- Risk of Breakage: Low, polycarbonate housing (no glass)
- Electrical: IEC60598-1, IEC60598-2-5 compliant
- Surge Protection: 1.5kV
- Fire Rating: UL-94 V0 compliant (no flaming droplets)
- IP Rating: IP20
- SABS: Safety tests passed
Interference Compliance
- WiFi, Barcode Scanner, Radio Frequency: No interference
- Standards: IEC 61547, SANS 215 (CISPR15) compliant
- Total Harmonic Distortion: IEC 61000-3-2 Class D Compliant
Additional Options
- Optional External Battery Backup: Battery output 1000 lm for 4h; 6h charge time; 1 year guarantee
BIM & documentation
The T8 LED Tube family is published in the OrbitX BIM library with Revit families, IFC and supporting documentation.
RVT 2022 showroomRFA familiesIFCIESTechnical documents

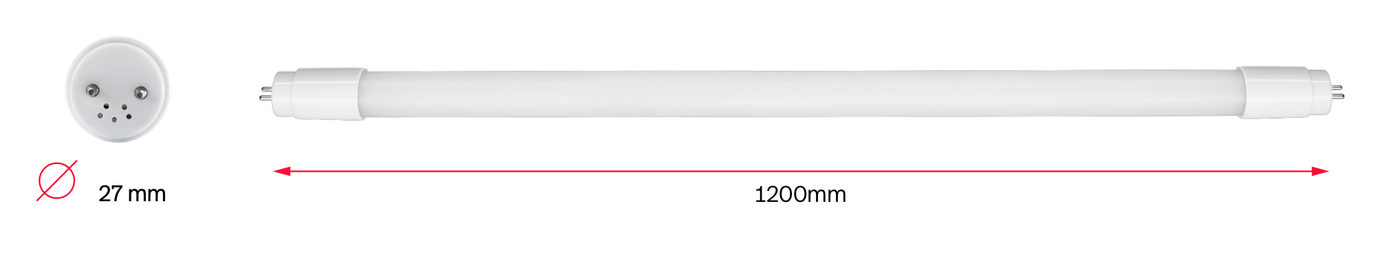

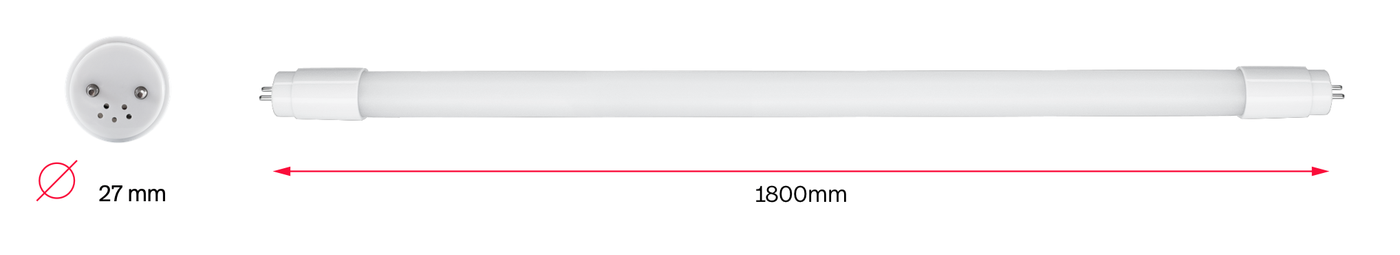

Dimensions
27 mm
Tube Diameter
600–2400 mm
Available Lengths
Configurations & Performance
| Length | Power (W) | Luminous Flux (lm) |
|---|---|---|
| 600 mm | 9 | 1000 |
| 900 mm | 12 | 1500 |
| 1200 mm | 16 | 2000 |
| 1500 mm | 19 | 2200 |
| 1800 mm | 27 | 3000 |
| 2400 mm | 32 | 4000 |
Graphs
Light Survival Rate Curve
Time (×1000 h) vs Light Survival (%)
Rate of Reduction in Light Output (L70)
Time (×1000 h) vs Lumen Output (%)
Type A Lighting*
Colour Rendering Index (CRI) vs Gamut Area Index (GAI)
*Type A Lighting as defined by the Lighting Research Centre, New York
Spectral Power Distribution (SPD)
Wavelength (nm) vs Relative Power
Model Codes & Packaging
| Model Code | Length (mm) | Power Rating | Units/Box | Box Dimensions (l × w × h mm) | Weight (kg) |
|---|---|---|---|---|---|
| OXT80600095 | 600 | 9 W | 60 | 1280 × 185 × 185 | 9.76 |
| OXT80900125 | 900 | 12 W | 30 | 1280 × 185 × 185 | 7.18 |
| OXT81200165 | 1200 | 16 W | 30 | 1280 × 185 × 185 | 10.03 |
| OXT81500195 | 1500 | 19 W | 30 | 1580 × 185 × 185 | 11.62 |
| OXT81800275 | 1800 | 27 W | 30 | 1850 × 185 × 185 | 14.63 |
| OXT82400325 | 2400 | 32 W | 30 | 2450 × 185 × 185 | 20.06 |
Specification tolerance: ±10%
