Puck Profile 40×43
INTEGRATED LINEAR LED LIGHT
Integrated Profile · SKU OX-LED-022
Thin end cap line (<3mm) on the light surface with a seamless look when mounted end-to-end. Made to last from polycarbonate with OrbitX Direct Drive Technology onboard.
Thin End Cap (<3mm)Seamless End-to-EndMade from PolycarbonateDirect Drive
Product gallery
Puck Profile 40×43 · 2 images including technical drawings
1 / 2

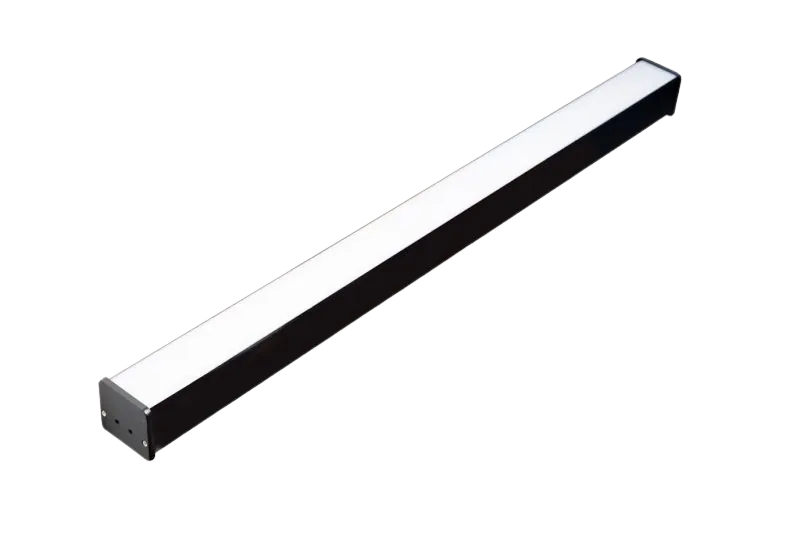

OrbitX Puck Profile 40x43mm

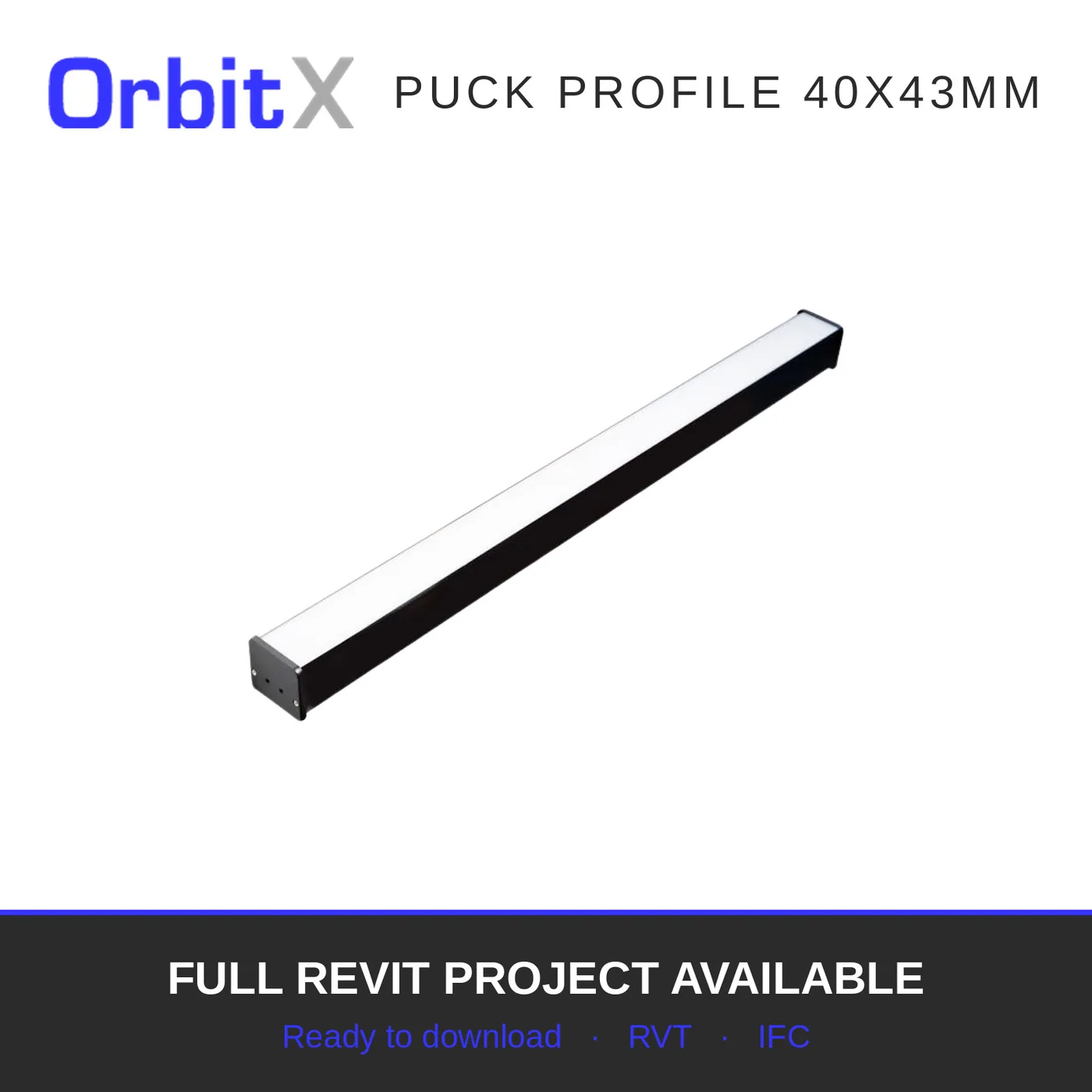

Image 1 of 2: OrbitX Puck Profile 40x43mm
Guarantee & Lifetime
- Operational Guarantee (365d × 24h): 6 years
- Light Output Guarantee (365d × 24h): 3 years
- Nominal Lifetime (L70): 60,000 hours
- Testing Standards: IES LM-80, TM-21
Photometric Data
- Luminous Efficacy: 110 lm/W
- Correlated Colour Temperature (CCT): 5000K (options available)
- Colour Rendering Index (CRI): 83
- Gamut Area Index (GAI): 96
- Light Quality: Type A compliant (Lighting Research Centre, New York)
- Beam Angle: 160°
- Stroboscopic Effect (100Hz): 80% flicker free (complies with OHS and MHS Act regulations)
Electrical Data
- Power: See Configurations table
- Power Factor: >0.98
- Operating Voltage: 220–240V AC
- Minimum Sustained Voltage: No minimum limit, operational from 150V
- Maximum Sustained Voltage: 250V for 2 minutes
- On/Off Switching: Unlimited
- Delay to Full Brightness: Immediate
Temperature
- Max Ambient Temperature (T Ambient): +30°C
- Min Ambient Temperature (T Ambient): -40°C
Safety & Compliance
- Risk of Breakage: Low, polycarbonate housing extruded to 1mm (no glass)
- Electrical: IEC60598-1, IEC60598-2-5 compliant
- Surge Protection: 1.5kV
- Fire Rating: UL-94 V0 compliant (no flaming droplets)
Interference Compliance
- WiFi, Barcode Scanner, Radio Frequency: No interference
- Standards: IEC 61547, SANS 215 (CISPR15) compliant
- Total Harmonic Distortion: IEC 61000-3-2 Class D Compliant
BIM & documentation
The Puck Profile 40×43 family is published in the OrbitX BIM library with Revit families, IFC and supporting documentation.
RVT 2022 showroomRFA familiesIFCTechnical documents
Dimensions
40 mm
Profile Width
43 mm
Profile Height
1200 / 2400 mm
Available Lengths
Configurations & Performance
| Length | Power (W) | Luminous Flux (lm) |
|---|---|---|
| 1200 mm | 32 | 4000 |
| 2400 mm | 64 | 8000 |
Model Codes & Packaging
| Model Code | Length (mm) | CCT | Power Rating | Units/Box | Box Dimensions (l × w × h mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| OXPP40431200324B | 1200 | 4000K | 32 W | 16 | 1280 × 185 × 185 | 5.36 |
| OXPP40431200325B | 1200 | 5000K | 32 W | 16 | 1280 × 185 × 185 | 5.36 |
| OXPP40432400644B | 2400 | 4000K | 64 W | 16 | 2480 × 185 × 185 | 10.72 |
| OXPP40432400645B | 2400 | 5000K | 64 W | 16 | 2480 × 185 × 185 | 10.72 |
Specification tolerance: ±10%
