Puck Panel Light
INTEGRATED LINEAR LED PANEL
LED Panel · SKU OX-LED-046
An integrated linear LED panel in black or white, designed as a direct replacement for the 1 200 × 600 mm panel light. The low-profile housing is extruded from polycarbonate with no glass.
Product gallery

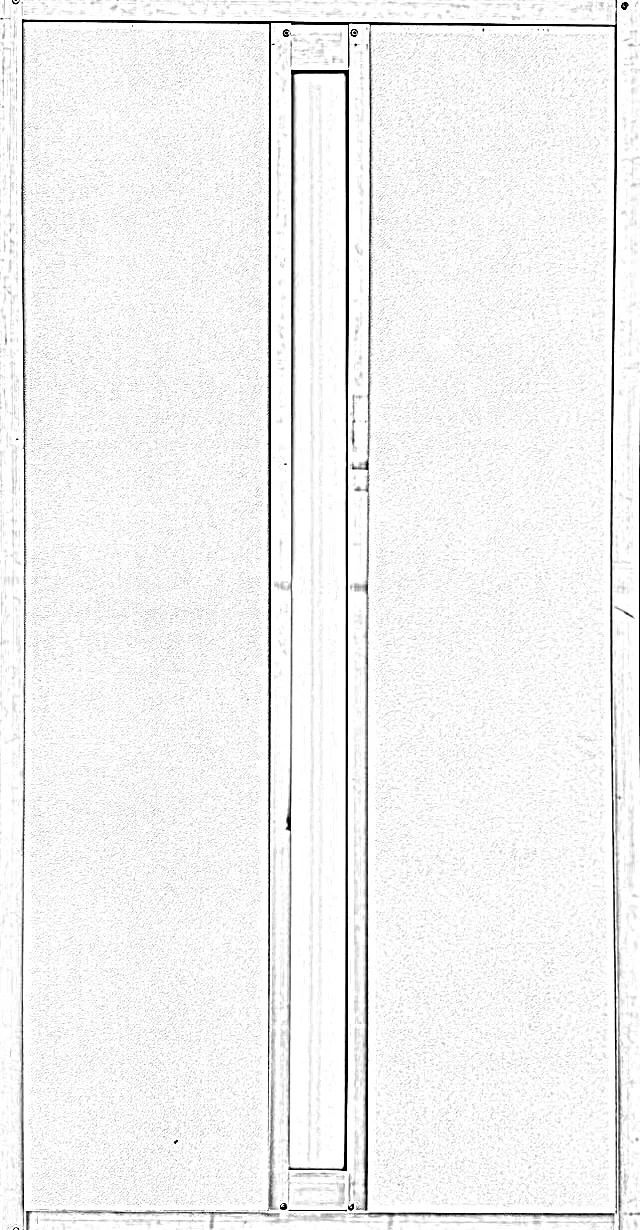

Puck Panel Light · 4 images including technical drawings

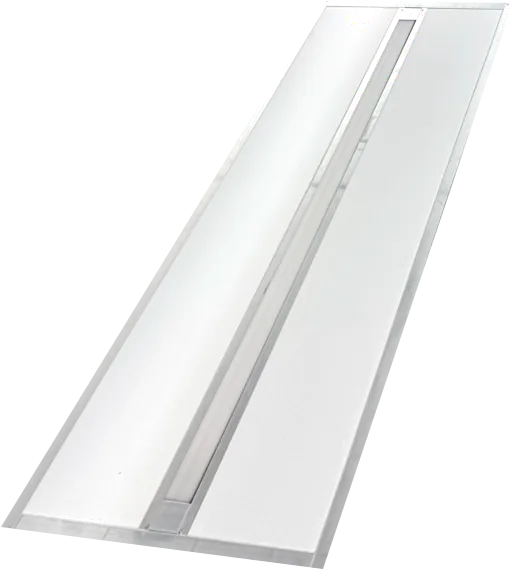

OrbitX Puck Panel Light
Image 1 of 4: OrbitX Puck Panel Light
Photometric Data
- Luminous Efficacy: 100 lm/W
- Colour Rendering Index (CRI): 83
- Beam Angle: 160°
- Colour Temperature: 4 000 K or 5 000 K
- 600 × 600 mm: 4 000 lm at 38 W
- 1 200 × 600 mm: 6 000 lm at 58 W
Electrical Data
- OrbitX Direct Drive Technology onboard
- Operating Voltage: 220–240 V AC
- Ambient Temperature: -40 °C to +30 °C
- Low-profile 39 mm housing
- Black or white finish
Construction
- Polycarbonate housing extruded to 1 mm
- No glass
- 600 × 600 mm and 1 200 × 600 mm sizes
- Replacement for the 1 200 × 600 panel light
- Integrated linear LED architecture
Guarantee & Compliance
- Operational Guarantee: 6 years
- Light Output Guarantee: 3 years
- Nominal Lifetime (L70): 60 000 hours
- IEC 60598-1 and IEC 60598-2-5
- IEC 61547, SANS 215 (CISPR15), UL-94 V0
BIM & documentation
The Puck Panel Light family is published in the OrbitX BIM library with Revit families, IFC and supporting documentation.
Dimensions
Configurations & Performance
| Model Code | Size | Power (W) | Luminous Flux (lm) |
|---|---|---|---|
| OXPU70360600404PNL | 600 × 600 mm | 38 | 4 000 |
| Available on request | 1 200 × 600 mm | 58 | 6 000 |
Both sizes are modelled in the Revit project. Specification tolerance ±10%.
Graphs
Light Survival Rate Curve
Time (×1000 h) vs Light Survival (%)
Rate of Reduction in Light Output (L70)
Time (×1000 h) vs Lumen Output (%)
Type A Lighting*
Colour Rendering Index (CRI) vs Gamut Area Index (GAI)
*Type A Lighting as defined by the Lighting Research Centre, New York
Spectral Power Distribution (SPD)
Wavelength (nm) vs Relative Power
