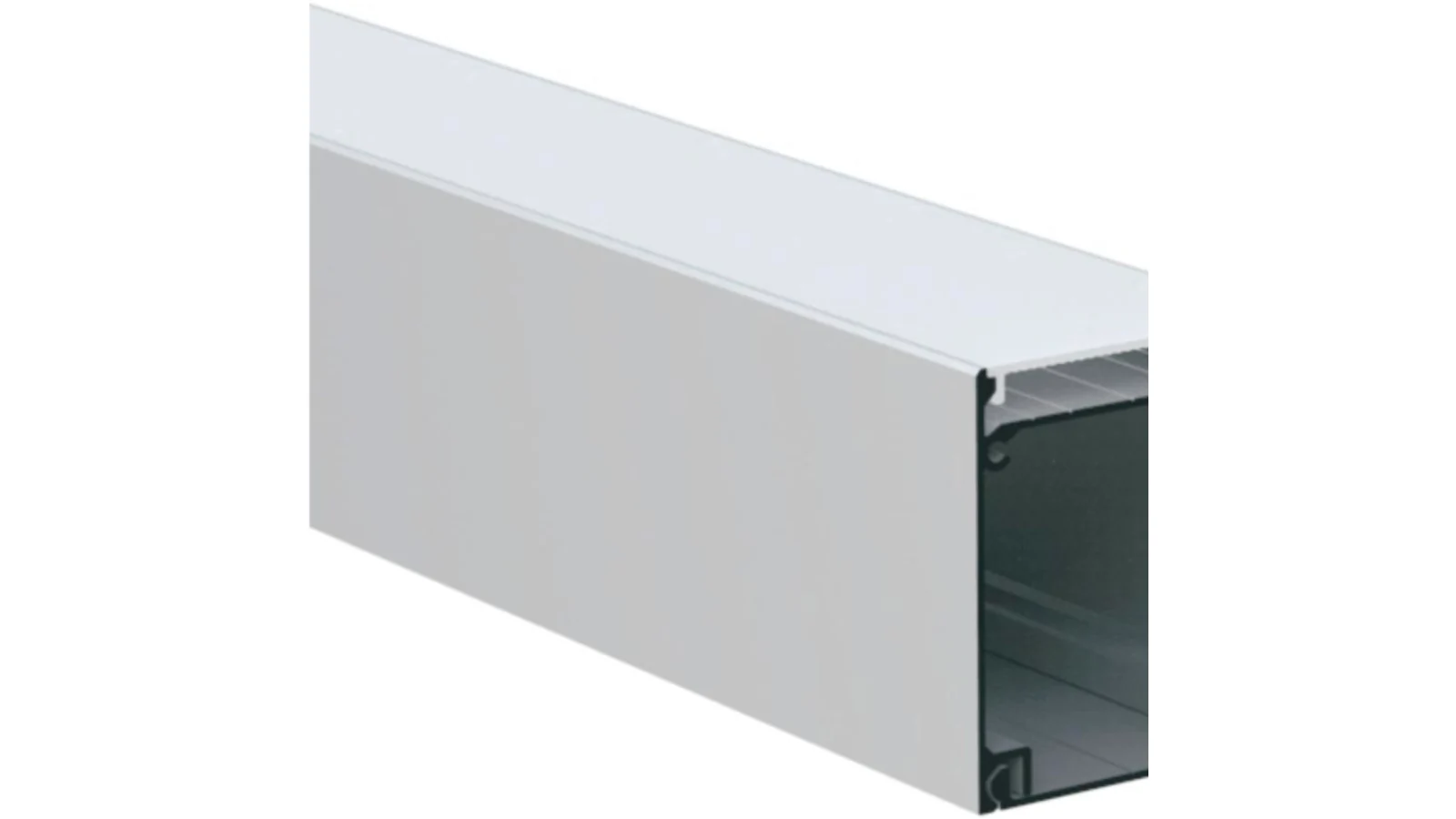

Profile 50×60 Uplight
SUSPENDED LINEAR LED UPLIGHT — 50 × 60 MM
Suspended Profile · SKU OX-LED-043
A linear LED profile uplight with an aluminium housing and polycarbonate diffuser, with no glass. Available in six lengths from 600 mm to 2 400 mm for continuous runs and feature lighting.
Product gallery
Profile 50×60 Uplight · 5 images including technical drawings
OrbitX Profile 50×60 Uplight

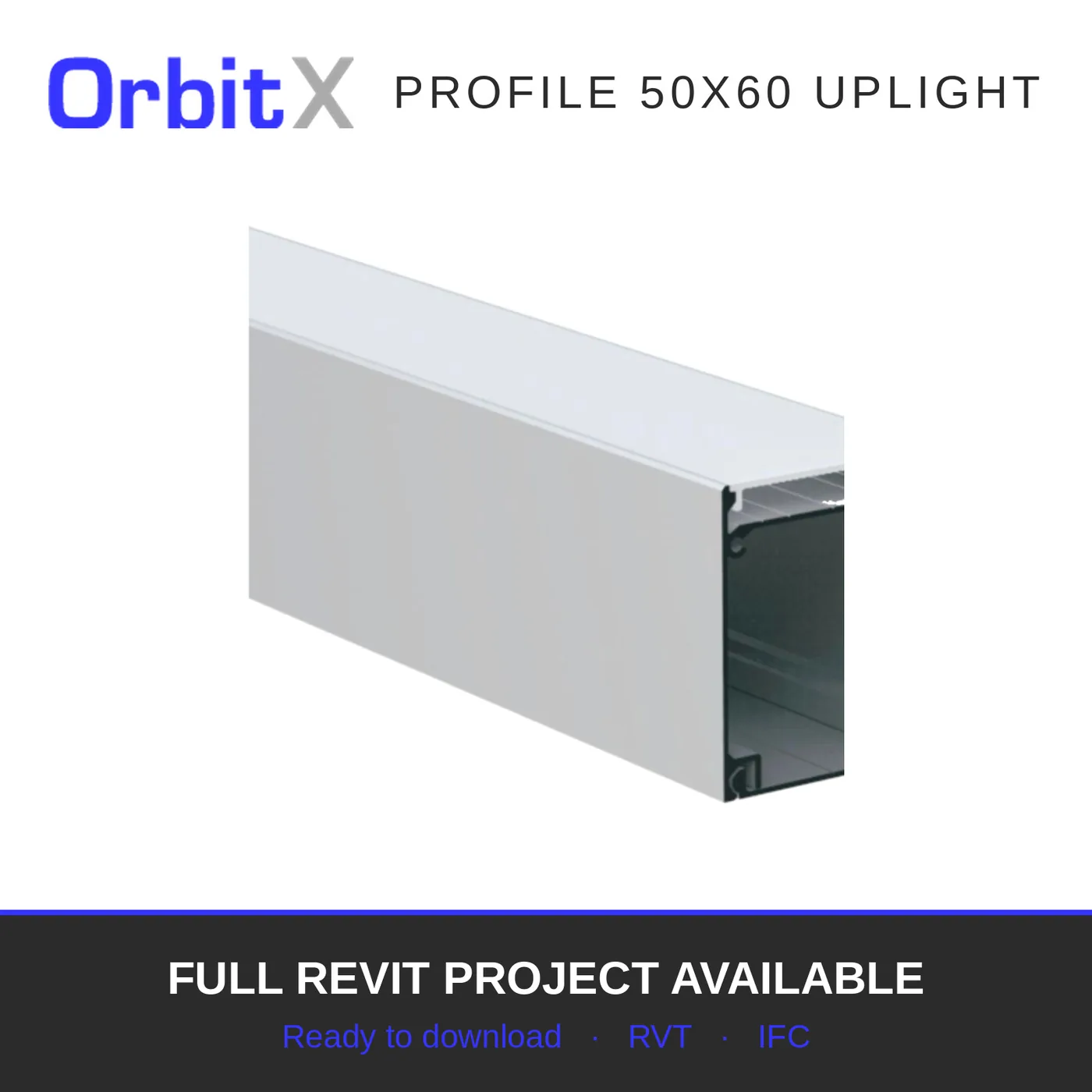

Image 1 of 5: OrbitX Profile 50×60 Uplight
Photometric Data
- 600 mm: 2 000 lm at 16 W
- 1 200 mm: 4 000 lm at 32 W
- Luminous efficacy: 125 lm/W
- Colour Temperature: 5 000 K (4 000 K option)
- Colour Rendering Index (CRI): 83
- Beam Angle: 120°
Electrical Data
- OrbitX Direct Drive Technology onboard
- Operating Voltage: 220–240 V AC
- Power Factor: >0.98
- IP Rating: IP20
- Ambient Temperature: -40 °C to +30 °C
Construction
- Aluminium housing
- Polycarbonate diffuser, no glass
- Profile: 50 × 60 mm
- Lengths: 600, 1 200, 1 500, 1 800, 2 100 and 2 400 mm
- Suspended uplight installation
Guarantee & Compliance
- Operational Guarantee: 8 years
- Light Output Guarantee: 5 years
- Nominal Lifetime (L70): 70 000 hours
- IEC 60598-1 and IEC 60598-2-5
- IEC 61547, SANS 215 (CISPR15), UL-94 V0
BIM & documentation
The Profile 50×60 Uplight family is published in the OrbitX BIM library with Revit families, IFC and supporting documentation.

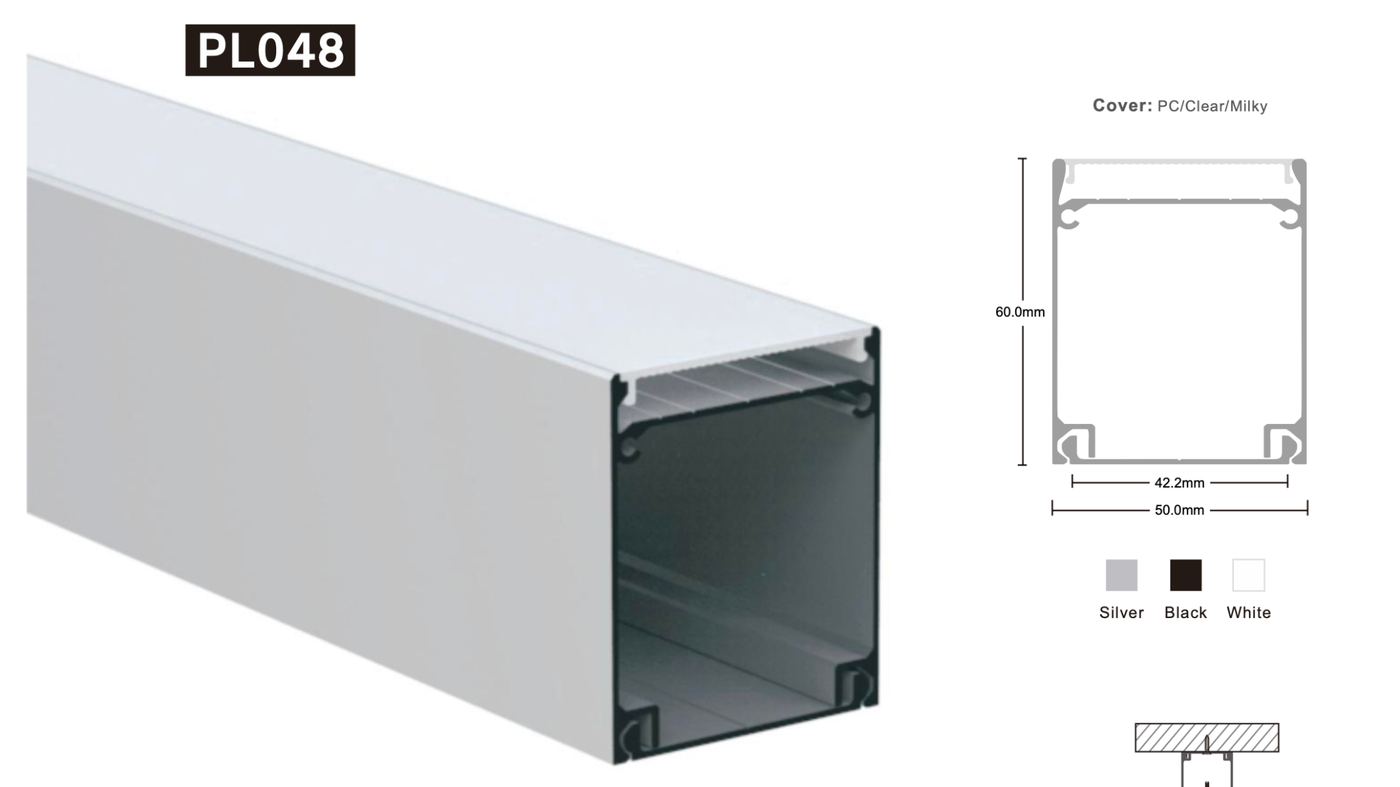

Dimensions
Configurations & Performance
| Model Code | Length | Power (W) | Luminous Flux (lm) |
|---|---|---|---|
| OXP5060600165T | 600 mm | 16 | 2 000 |
| OXP50601200325T | 1 200 mm | 32 | 4 000 |
| OXP50601500405T | 1 500 mm | 40 | — |
| OXP50601800485T | 1 800 mm | 48 | — |
| OXP50602100565T | 2 100 mm | 56 | — |
| OXP50602400645T | 2 400 mm | 64 | — |
All six lengths are modelled in the Revit project. Lumen figures for 1 500–2 400 mm scale at 125 lm/W; refer to the specification sheet.
Graphs
Light Survival Rate Curve
Time (×1000 h) vs Light Survival (%)
Rate of Reduction in Light Output (L70)
Time (×1000 h) vs Lumen Output (%)
Type A Lighting*
Colour Rendering Index (CRI) vs Gamut Area Index (GAI)
*Type A Lighting as defined by the Lighting Research Centre, New York
Spectral Power Distribution (SPD)
Wavelength (nm) vs Relative Power
