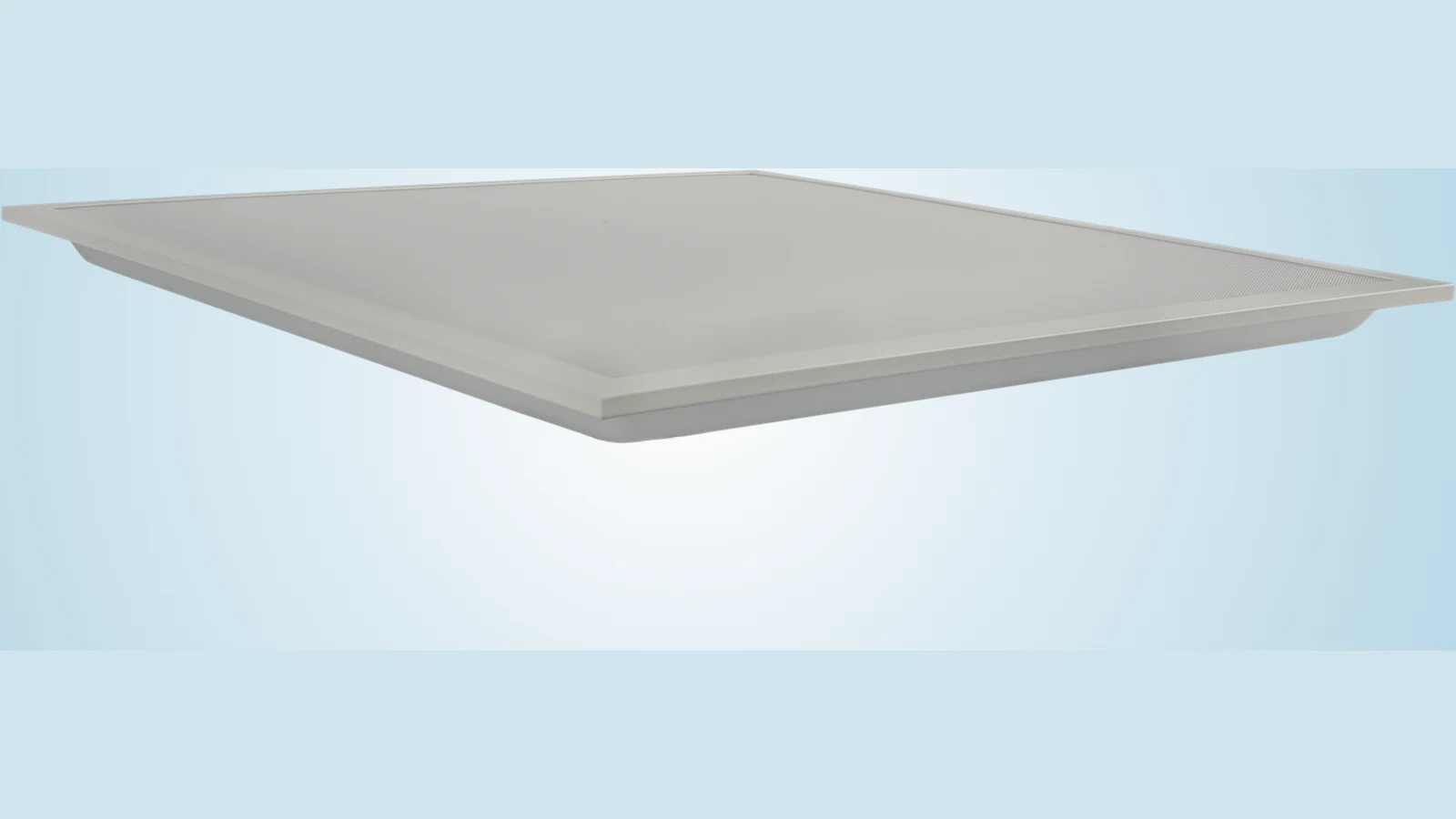

BACKLIT LED PANEL — 600 × 600 MM
LED Panel · SKU OX-LED-040
A backlit 600 × 600 mm LED panel with a polycarbonate diffuser and back plate, engineered for uniform light distribution in offices, retail and commercial ceilings.
Product gallery
Panel 600×600 · 3 images including technical drawings
OrbitX Panel 600×600

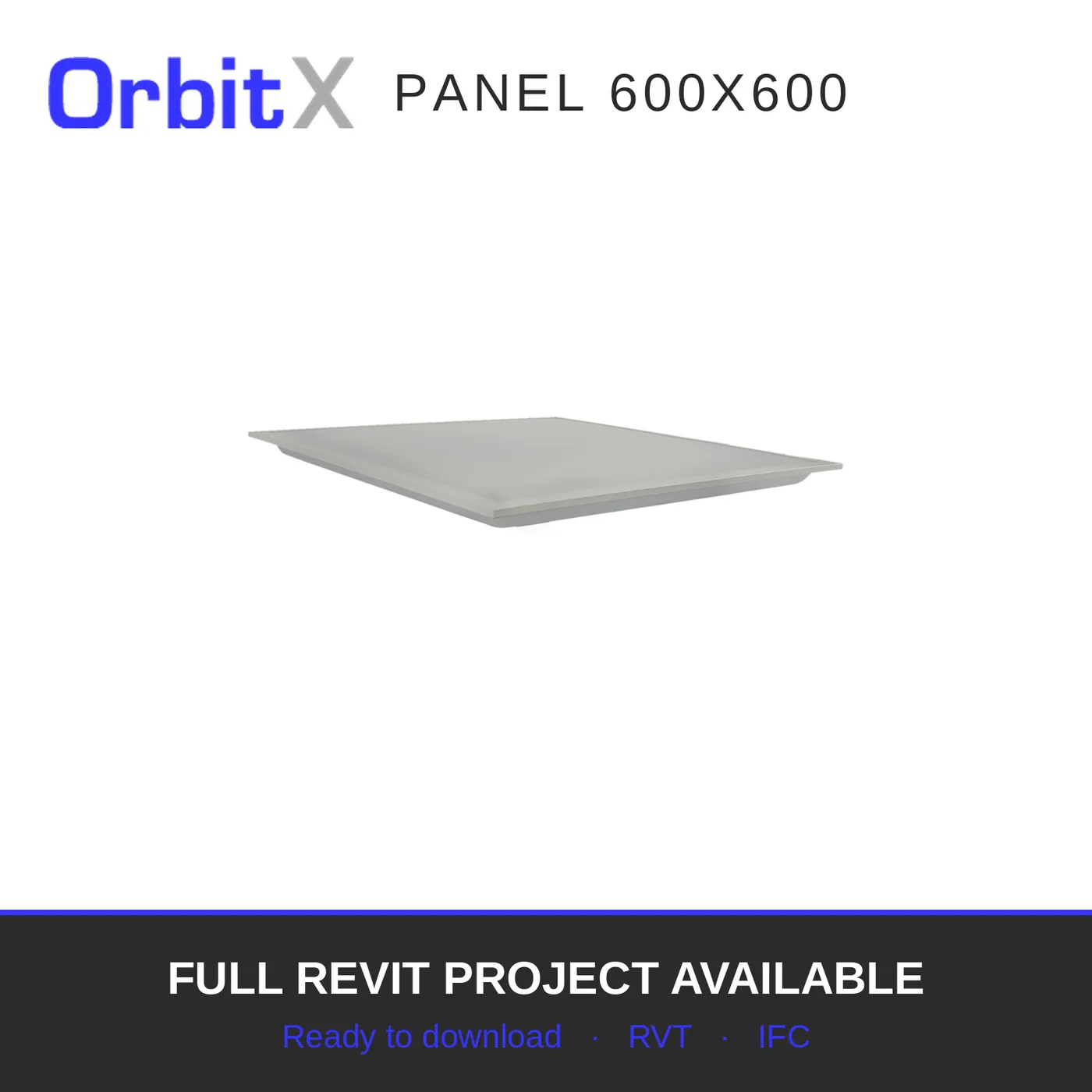

Image 1 of 3: OrbitX Panel 600×600
Photometric Data
- Luminous Flux: 4 000 lm
- Luminous Efficacy: 100 lm/W
- Colour Temperature: 5 000 K (4 000 K option)
- Colour Rendering Index (CRI): 83
- Beam Angle: 120°
- Uniform backlit distribution
Electrical Data
- Power: 40 W
- Power Factor: >0.95
- Operating Voltage: 220–240 V AC
- IP Rating: IP20
- Flicker free — OHS and MHS Act compliant
- Ambient Temperature: 0 °C to +30 °C
Construction
- Dimensions: 600 × 600 × 33 mm
- Polycarbonate diffuser and back plate
- Backlit LED architecture
- No glass
- Ceiling grid or surface mounting
Guarantee & Compliance
- Operational Guarantee: 6 years
- Light Output Guarantee: 3 years
- Nominal Lifetime (L70): 60 000 hours
- IEC 61347-2-13:2014/AMD1:2016, IEC 61347-1:2015
- EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
BIM & documentation
The Panel 600×600 family is published in the OrbitX BIM library with Revit families, IFC and supporting documentation.

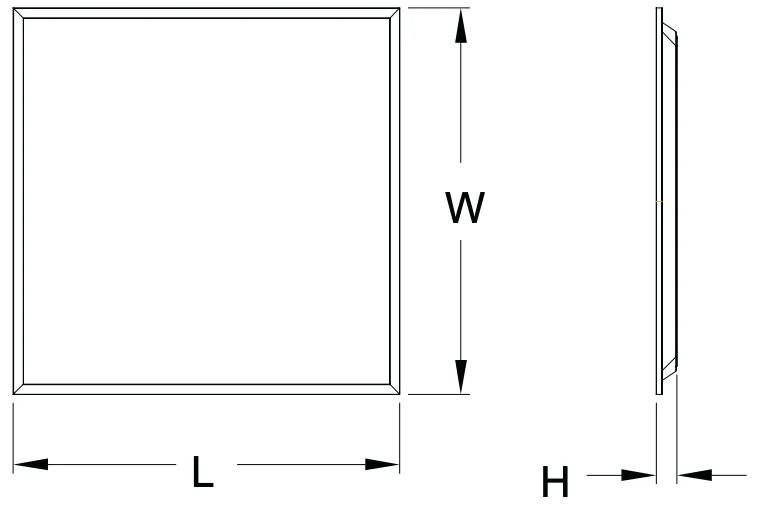

Dimensions
Configurations & Performance
| Model Code | Size | Power (W) | Luminous Flux (lm) |
|---|---|---|---|
| OXPF5060600165T | 600 × 600 × 33 mm | 40 | 4 000 |
Revit project covers the 600 × 600 mm, 40 W panel. Specification tolerance ±10%.
Graphs
Light Survival Rate Curve
Time (×1000 h) vs Light Survival (%)
Rate of Reduction in Light Output (L70)
Time (×1000 h) vs Lumen Output (%)
Type A Lighting*
Colour Rendering Index (CRI) vs Gamut Area Index (GAI)
*Type A Lighting as defined by the Lighting Research Centre, New York
Spectral Power Distribution (SPD)
Wavelength (nm) vs Relative Power
