Geminus
INTEGRATED IP20 LINEAR LED LIGHT
Linear Fitting · SKU OX-LED-025
OrbitX Direct Drive Technology onboard. Lowest cost, uncompromised OrbitX quality with new fit-and-retrofit options for LED-ready fittings.
T8 RetrofitDirect DriveUnique Retrofit OptionsIP20
Product gallery
Geminus · 5 images including technical drawings
1 / 5

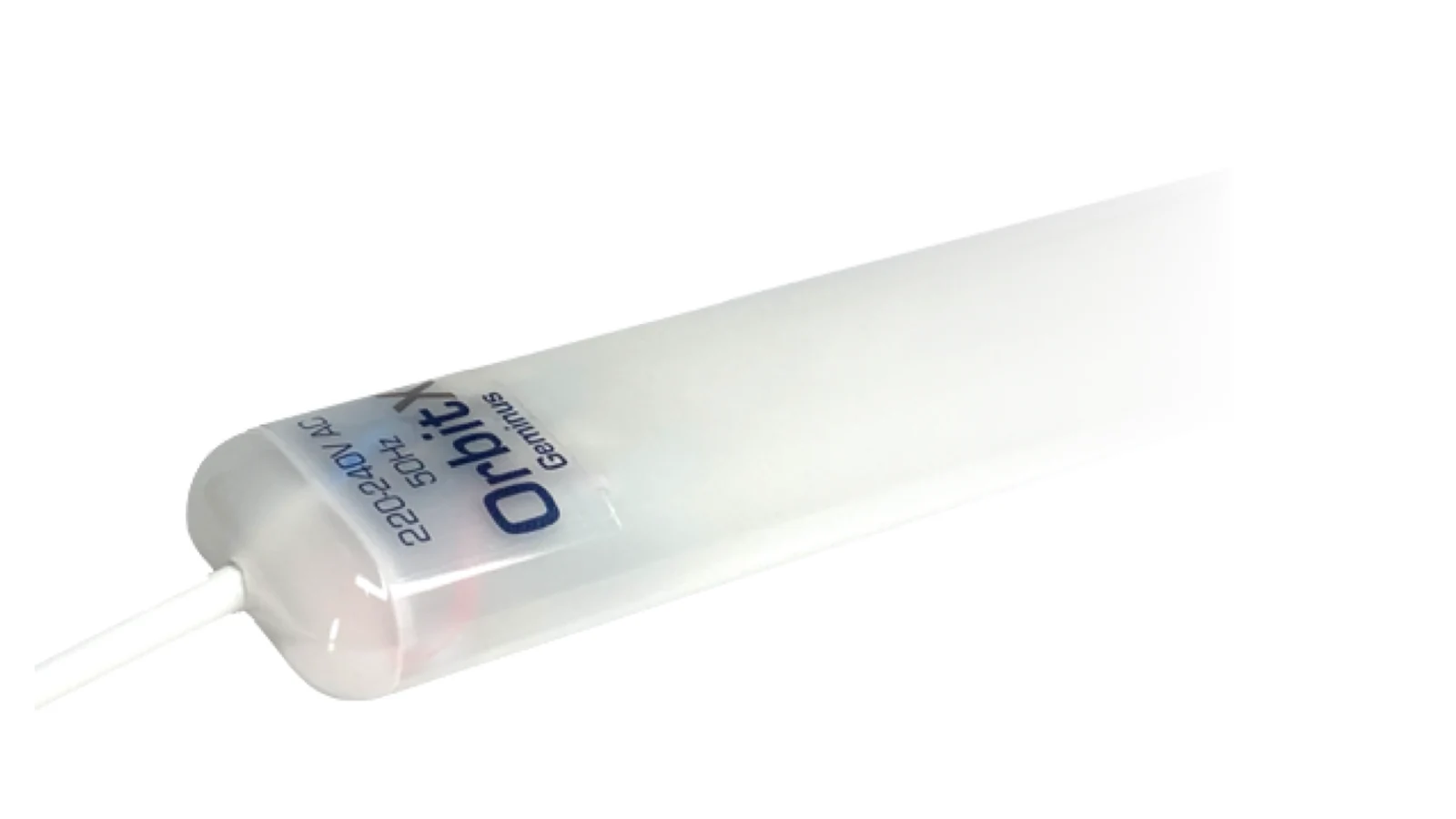

OrbitX Geminus
Image 1 of 5: OrbitX Geminus
Guarantee & Lifetime
- Operational Guarantee (365d × 24h): 6 years
- Light Output Guarantee (365d × 24h): 3 years
- Nominal Lifetime (L70): 60,000 hours
- Testing Standards: IES LM-80, TM-21
Photometric Data
- Luminous Efficacy: 135 lm/W
- Correlated Colour Temperature (CCT): 5000K (options available)
- Colour Rendering Index (CRI): 83
- Gamut Area Index (GAI): 96
- Light Quality: Type A compliant (Lighting Research Centre, New York)
- Beam Angle: 180°
- Stroboscopic Effect (100Hz): 80% flicker free (complies with OHS and MHS Act regulations)
Electrical Data
- Power: See Configurations table
- Power Factor: >0.98
- Operating Voltage: 220–240V AC
- Minimum Sustained Voltage: No minimum limit, operational from 150V
- Maximum Sustained Voltage: 250V for 2 minutes
- On/Off Switching: Unlimited
- Delay to Full Brightness: Immediate
Temperature
- Max Ambient Temperature (T Ambient): +30°C
- Min Ambient Temperature (T Ambient): -40°C
Safety & Compliance
- Risk of Breakage: Low, polycarbonate housing extruded to 1mm (no glass)
- Electrical: IEC60598-1, IEC60598-2-5 compliant
- Surge Protection: 1.5kV
- Fire Rating: UL-94 V0 compliant (no flaming droplets)
- IP Rating: IP20
Interference Compliance
- WiFi, Barcode Scanner, Radio Frequency: No interference
- Standards: IEC 61547, SANS 215 (CISPR15) compliant
- Total Harmonic Distortion: IEC 61000-3-2 Class D Compliant
BIM & documentation
The Geminus family is published in the OrbitX BIM library with Revit families, IFC and supporting documentation.
RVT 2022 showroomRFA familiesIFCIESTechnical documents
Dimensions
28 mm
Tube Diameter
600 / 1200 mm
Available Lengths
Configurations & Performance
| Length | Power (W) | Luminous Flux (lm) |
|---|---|---|
| 600 mm | 18 | 2000 |
| 1200 mm | 32 | 4000 |
Graphs
Light Survival Rate Curve
Time (×1000 h) vs Light Survival (%)
Rate of Reduction in Light Output (L70)
Time (×1000 h) vs Lumen Output (%)
Type A Lighting*
Colour Rendering Index (CRI) vs Gamut Area Index (GAI)
*Type A Lighting as defined by the Lighting Research Centre, New York
Spectral Power Distribution (SPD)
Wavelength (nm) vs Relative Power
Model Codes & Packaging
| Model Code | Length (mm) | Power Rating | Units/Box | Box Dimensions (l × w × h mm) | Weight (kg) |
|---|---|---|---|---|---|
| OXGM0600185 | 600 | 18 W | 60 | 1280 × 185 × 185 | 5.36 |
| OXGM1200325 | 1200 | 32 W | 30 | 1280 × 185 × 185 | 10.72 |
Specification tolerance: ±10%
